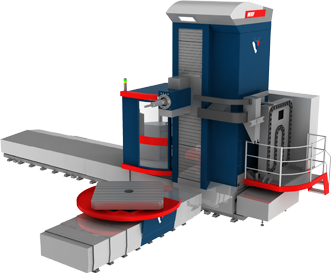

TABLE TYPE HORIZONTAL BORING MACHINE - WFT 13 CNC
The Horizontal Boring Mills from FERMAT Machinery is manufactured for effectual and precise functioning. The Table Type Horizontal Boring Machine Model - WFT 13 CNC is a finely designed horizontal borer that features the best-in-class technology implementable across varied industrial operations. This technology incorporates a unique concept in the table type CNC boring mill arena and is drawing toward exceptional demand in the market today. Special parts such as the high axial forces and powerful headstock make this boring mill the most sought after under the T-Type CNC Boring Mill class.
The multipurpose FERMAT WFT 13 CNC Mill holds a sophisticated design, which assists in processing large to heavy work pieces in a highly efficient manner along with offering remarkable quality. WFT 13 CNC Mill is equipped with AC Servometers, Rotary Table, Longitudinal & Transversal Beds and Automatic Pallet Systems that ensure operational efficiency, thus match the clients' requirements accurately.
WFT 13 CNC Specifications
Design
The machine features a modular design that helps the customers with ease of configuration to meet their specific requirements. Every component that goes into making of the machine is sourced from well-established and quality-oriented manufacturers. The design descriptions include:
⦁ X-axis travel from 1500 to 5000 mm
⦁ Y-axis travel from 1700 mm to 3500 mm
⦁ Z-axis travel 1200 mm, or 1700 mm for Y-axis from 1700 mm to 2500 mm
⦁ Z-axis travel 1500 mm or 2000 mm for Y-axis 3000 mm and 3500 mm
The CNC rotary table is produced in three different dimensions such as:
⦁ 1600 x 1800 mm
⦁ 1800 x 2200 mm with maximum table load 15 tons
⦁ 2000 x 2400 mm with maximum table load 20 tons
Axes
The X, Y, Z, W and B axes embedded in the WFT 13 machine enable smooth operation of four linear and one rotary axes. A constant and simultaneous B-axis rotation enabled by the rotary table option is in sync with the other axes. The axis-specific ability simplifies functions such as metal cutting and work-piece clamping through the Z & X axes' movement. The ball screw alignment, powerful headstock, rigid column and powerful headstock of the Y-axis and other operational proficiencies of the machine are most precise.
Some of the other significant features of the machine that account to high precision functioning include standard spindle thermal monitoring system, no-slip-stick rotary table and Heidenhain linear scales.
Control Systems
Proven quality in CNC systems help with simple and skilful management of the machine and its controls for end-users. The Control Systems used in WFT 13 CNC are Siemens 840D, Fanuc 31i and iTNC 530, which altogether enhance its overall performance.
Contact Fermat at : https://www.fermatmachinery.com
The multipurpose FERMAT WFT 13 CNC Mill holds a sophisticated design, which assists in processing large to heavy work pieces in a highly efficient manner along with offering remarkable quality. WFT 13 CNC Mill is equipped with AC Servometers, Rotary Table, Longitudinal & Transversal Beds and Automatic Pallet Systems that ensure operational efficiency, thus match the clients' requirements accurately.
Design
The machine features a modular design that helps the customers with ease of configuration to meet their specific requirements. Every component that goes into making of the machine is sourced from well-established and quality-oriented manufacturers. The design descriptions include:
⦁ X-axis travel from 1500 to 5000 mm
⦁ Y-axis travel from 1700 mm to 3500 mm
⦁ Z-axis travel 1200 mm, or 1700 mm for Y-axis from 1700 mm to 2500 mm
⦁ Z-axis travel 1500 mm or 2000 mm for Y-axis 3000 mm and 3500 mm
The CNC rotary table is produced in three different dimensions such as:
⦁ 1600 x 1800 mm
⦁ 1800 x 2200 mm with maximum table load 15 tons
⦁ 2000 x 2400 mm with maximum table load 20 tons
Axes
The X, Y, Z, W and B axes embedded in the WFT 13 machine enable smooth operation of four linear and one rotary axes. A constant and simultaneous B-axis rotation enabled by the rotary table option is in sync with the other axes. The axis-specific ability simplifies functions such as metal cutting and work-piece clamping through the Z & X axes' movement. The ball screw alignment, powerful headstock, rigid column and powerful headstock of the Y-axis and other operational proficiencies of the machine are most precise.
Some of the other significant features of the machine that account to high precision functioning include standard spindle thermal monitoring system, no-slip-stick rotary table and Heidenhain linear scales.
Control Systems
Proven quality in CNC systems help with simple and skilful management of the machine and its controls for end-users. The Control Systems used in WFT 13 CNC are Siemens 840D, Fanuc 31i and iTNC 530, which altogether enhance its overall performance.
Contact Fermat at : https://www.fermatmachinery.com
Thursday, 30 May 2013
Monday, 27 May 2013
Horizontal Boring Mill CNC - Floor Type CNC Borer
Horizontal Boring and Milling Machines-Floor Type
One of the primary features of the fermat floor type horizontal boring and milling machines their is a powerful milling and drilling chip removal(even with top y-axis stroke) and higher precision than other machines available on the market.WRF Series:
These are used mainly for accurate and extremely effective machining of big and large perform items from metal,cast metal and metal.Our machines are usually ideal for machining of huge power areas,crane orship areas,oil and gas machines and identical structures.
 |
FLOOR TYPE HORIZONTAL BORING MACHINE - WRF 130/150/160 CNC
|
WRF 130 CNC Portable:
It allows an simple exchange of the machine outside a lasting foundation to the wish place.This is used while machining huge areas,which can not be funneled quickly,such as areas for the development of huge power areas,ships,.etc.
 |
| PORTABLE FLOOR TYPE BORING MILL - WRF 130 CNC |
WF 13 CNC:
This machine is developed for accurate and extremely effective organize boring,drilling,milling and reducing of discussions of big and large perform items up to 20 000kg|4092lb of huge and strong perform items from metal,cast metal and metal.
 |
Horizontal boring Machine WF 13 CNC
|
For more details visit For more details visit http://www.fermatmachinery.com
Email us at : fermat.india@fermatmachinery.com
Table Type Horizontal Boring Machine WRFT 130 CNC - Fermat Machinery
Horizontal Boring and Milling Machines-Table Type
The former is a edition with a convenient stay spindle;whereas the latter offers a convenient ram.Among the machine features their is a powerful milling and drilling chip removal(even with top y-axis stroke) and higher precision than other machines available on the market.
WFT 13 CNC:
Due to contemporary style,WFT 13 is a worldwide boring and milling machine that allows effective handling of huge and large workpieces while using great perfection and great high quality of function.
 |
| https://www.fermatmachinery.com/wft-13-cnc |
WRFT 130,150,160 CNC:
WRFT 130 is optionally equipped with the Automatic Tool Changer (ATC) or the Automatic Pallet Changer System(APC) and with different kinds of Manual or Automatic Milling Heads. |
TABLE TYPE HORIZONTAL BORING MACHINE - WRFT 130/150/160 CNC
|
WFC 13 CNC:
It is a new type of the machine, which is built on a sliding guiding. The frame of this machine is seated on a firm stand and linked with a bed in the axis X.
 |
TABLE TYPE HORIZONTAL BORING MACHINE - WFC 13 CNC
|
WFC 10 CNC:
It is a new style of horizontal boring machine prepared with a spindle size of 100 mm|3.94”.It is the tiniest horizontal boring machine from the fermat production appropriate for machining for of smaller sized and mid-sized perform items up to 3000kg|6614lb.
 |
Table Type Horizontal boring machine specification :
| Diameter of Spindle | 130mm |
| Taper of Spindle | ISO-50/BT-50/CAT-50 |
| Range of Spindle speed | 10-3100rpm |
| Rated Power of Main Engine S1/S6 | 37/56|50/75 KW |
| Travel Table X | 1500-5000mm |
| Headstock Vertical Travel Y | 2000-3500mm |
| Longitudinal Travel Z | 1500-2000mm |
| Extension Spindel Travel W | 730mm |
| Longitudinal Headstock Travel V (WFT 13R) | 600mm |
| Operating Feed X, Y, Z, V | 1-8000mm/min |
| W | 1-6000mm/min |
| B | 1-1.7rpm |
| Max. Table Load | 20000kg |
| Table Dimension | 1200x1400-1800x2200mm |
Fermat CNC Boring Machine working with high Precision video :
For more details about table type horizontal boring machine visit us at : http://www.fermatmachinery.com/wft-13-cnc
